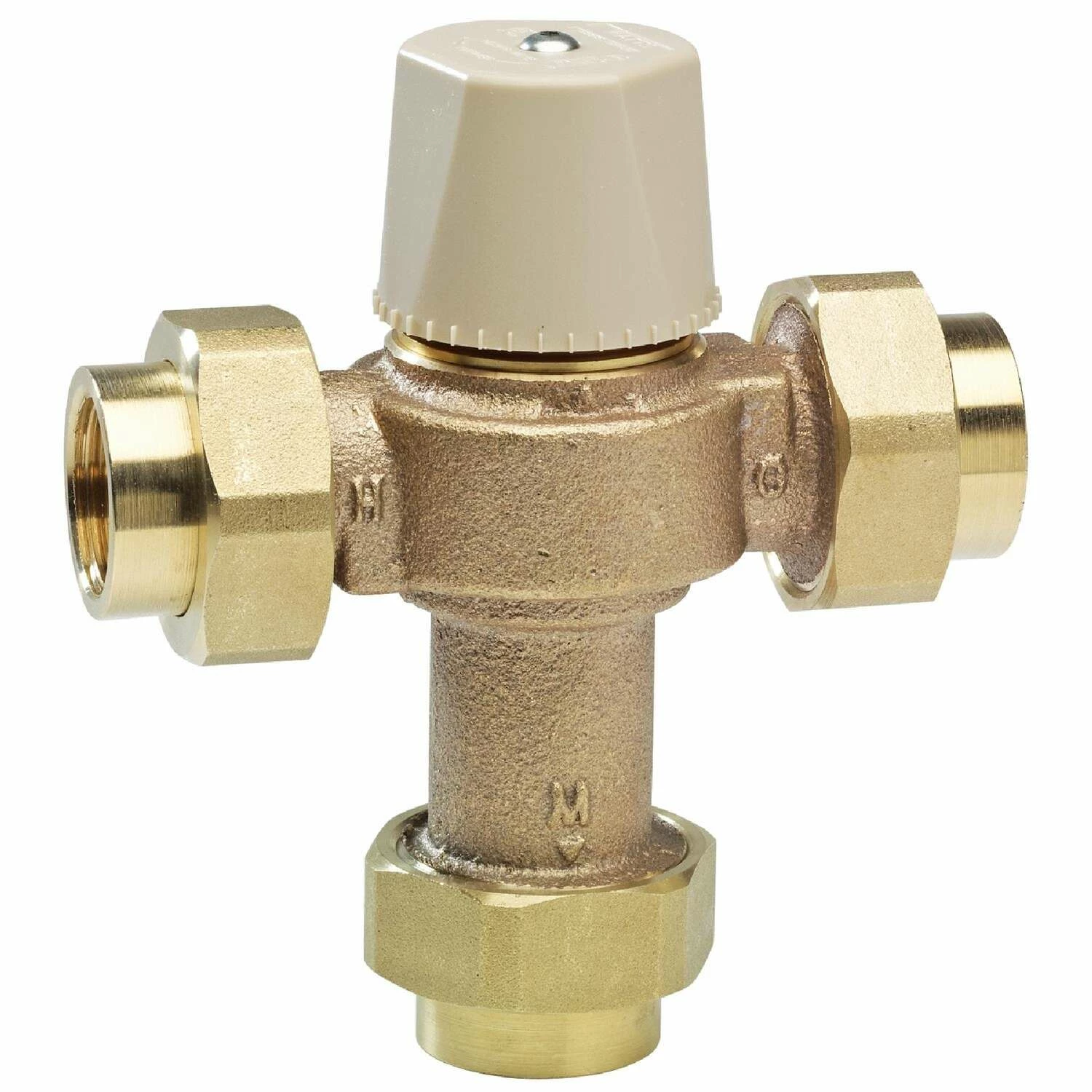

Name: Watts LFMMV 1/2 In. FNPT Brass Mixing Valve 1/2 In. FNPT 1 Pk
SKU: 4904546
Availability: InStock

Sale!

Watts LFMMV 1/2 In. FNPT Brass Mixing Valve 1/2 In. FNPT 1 Pk

Watts LFMMV 1/2 In. FNPT Brass Mixing Valve 1/2 In. FNPT 1 Pk - Image 2

Watts LFMMV 1/2 In. FNPT Brass Mixing Valve 1/2 In. FNPT 1 Pk - Image 3

Watts LFMMV 1/2 In. FNPT Brass Mixing Valve 1/2 In. FNPT 1 Pk - Image 4

Original price was: £159.99.Current price is: £99.99.

SKU: 4904546 Categories: Pressure Regulator Valves, Valves Tag: Watts

Experience the difference quality makes.
Quick responses, top-notch service.
Free Shipping Worldwide
Free Shipping, No Compromise on Quality

This 1/2 inch lead free thermostatic mixing valve is designed for residential, commercial or institutional environments for supplying baths or lavatories with tempered water. It consists of a lead free brass body, threaded union connections, solid wax hydraulic principle thermostat, integral filter washers and check valves with a locking mechanism for the temperature setting. The adjustable field range temperature at mixed outlet is 80 to 120 degrees F (27 to 49 degrees C). The maximum pressure rating is 150 psi (10.3 bar).

Thermal actuation technology for precise temperature control

ASSE 1070, ASSE 1069, ASSE 1017 and UPC listed

Double throttling design to control both the hot and cold water supply to the mixed outlet

Finish: Rough Bronze*Cold Inlet Temperature Range: 39 to 85 deg. F*Factory Set Temperature: 105 deg. F*Flow Rate: 0.5 to 20 GPM*Hot Inlet Temperature Range: 120 to 180 deg. F

Sales Rank	038
Adjustable	Yes
Country Of Origin	US
Delivery Offered	Y
Department Number	4
DIFM Service Code	N
Display Only Item	N
Search Field	Watts LFMMV 1/2 in. FNPT Brass Mixing Valve 1/2 in. FNPT 1 pk Valves Pressure Regulator Valves VALVES,EXCEPT ROUGH BRASS PRESSURE REDUCING VALVES WATTS Watts LFMMV 0.5__rexuom__in 1/2__rexuom__in 0.5__rexuom__inch 1/2__rexuom__inch 0.5__rexuom__in 1/2__rexuom__in 0.5__rexuom__inch 1/2__rexuom__inch 1__rexuom__pk 1__rexuom__pack
Local SKU Available Stores	ALL
Local SKU Store SKUs	4904546
Body Material	Brass
Assembly Code	N
End 1 Size	1/2 inch
End 1 Type	FNPT
End 2 Size	1/2 inch
End 2 Type	FNPT
Maximum Pressure	150 pound per square inch
Maximum Temperature	120 degree Fahrenheit
Minimum Temperature	80 degree Fahrenheit
Number in Package	1 pack
Packaging Type	Boxed
Brand Name	Watts
Merchandise Class Description	VALVES,EXCEPT ROUGH BRASS
Shipping Code	Y
Vendor Number	09573
Unit Velocity Code	X
Product Source Code	B
Product Type Noun	Valve
Retail Velocity Code	D
Dollar Velocity Code	C
Sub Brand	LFMMV
Store Availability Rank	10
Vendor Name	WATTS
Warranty Code	N
Category	Valves
Web Order Multiple	1
Product Group Description	PRESSURE REDUCING VALVES
Paint Code	N
Proposition 65 Flag	N
Product Type	Mixing Valve
Product Type Code	014011801006
Sub-category	Pressure Regulator Valves
ISPU Only Item Flag	N
Item Restriction Flag	N
Lead Content	Lead-Free
