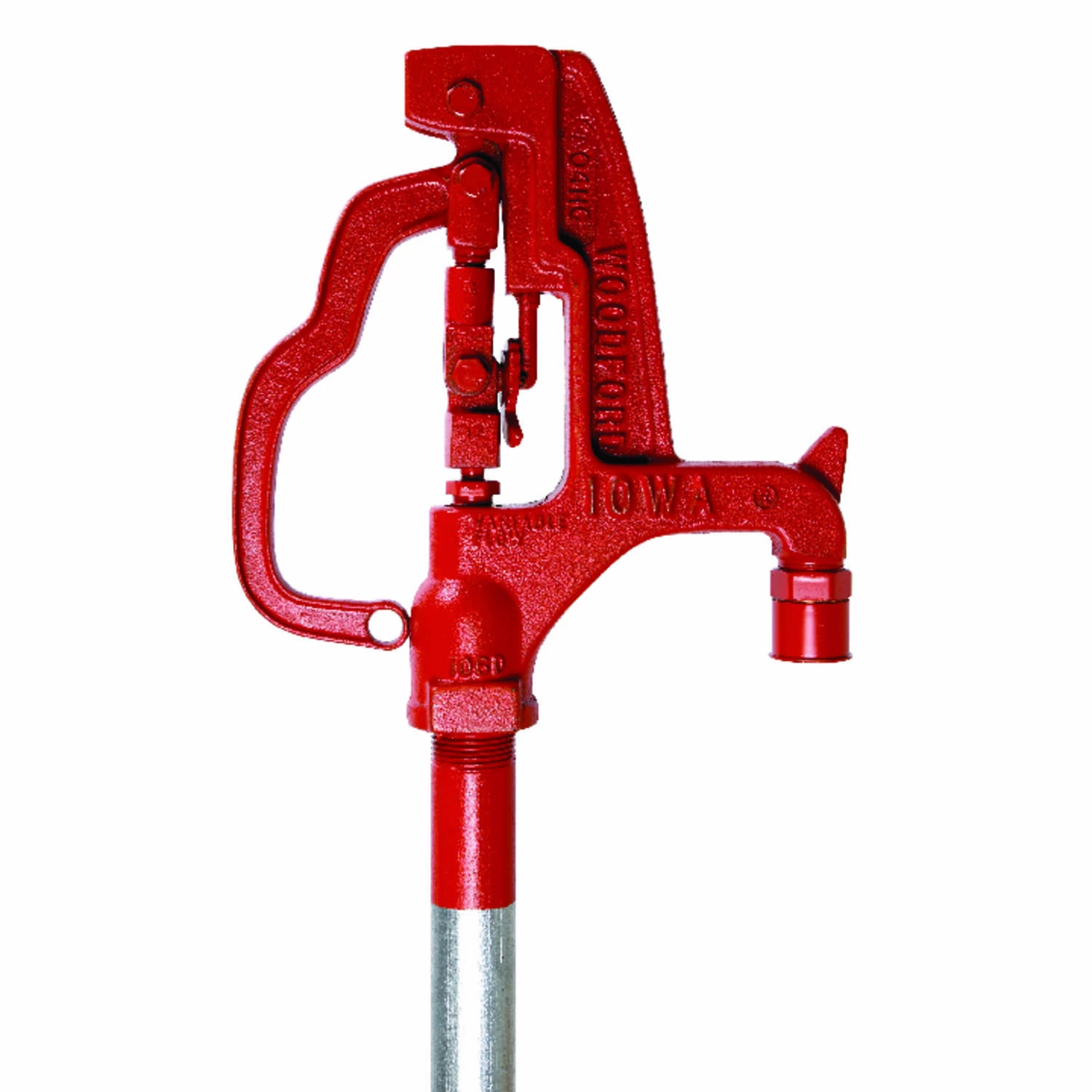

Woodford Iowa 3/4 In. FIP MPT Steel Yard Hydrant

The Woodford IOWA model Y34 (orange head) 3/4 in. NPT variable-flow yard hydrant is immediate-flowing, even in sub-zero conditions and is produced in the USA. The adjustable linkage provides easy and positive adjustment of the lever lock tension. A rod guide eliminates side pull on the rod, reducing wear on the packing, packing nut and the stem. The one piece variable-flow plunger and the large cushion type seal for long life, assuring shut-off, even when foreign particles are present in. the water line. The flow finder and lock automatically sets the same flow each time or can be locked against accidental opening. The Y34 automatically drains when shut-off. Since 1929, The Woodford IOWA® Yard hydrant is the Choice of Professionals

All repairs can be made at the top of the unit without removing hydrant from the ground. Repair parts readily available

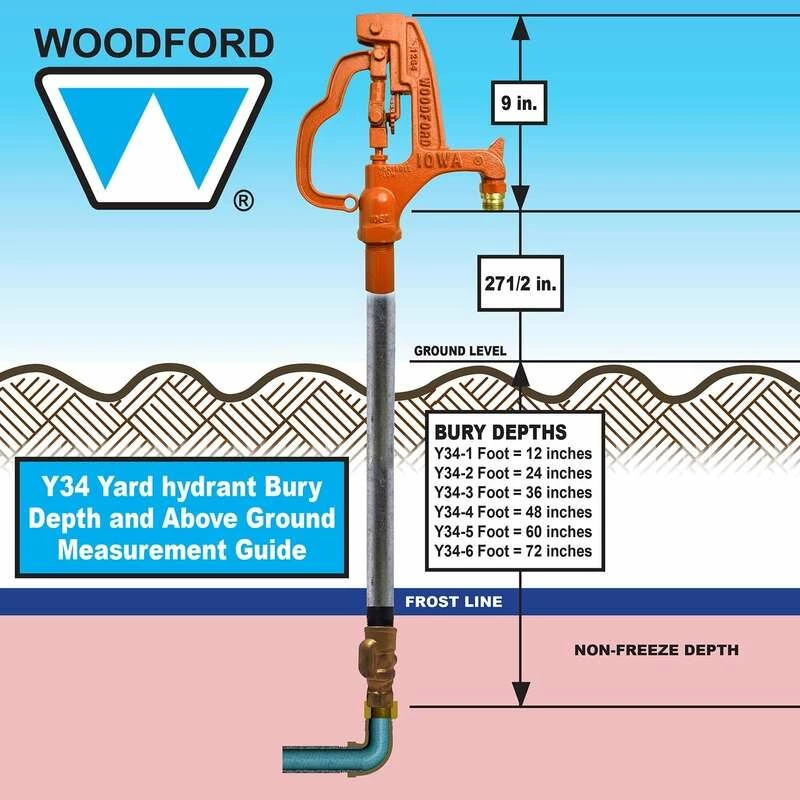

5 Foot Bury – 96.5 in. overall length (36.5 in. above ground)

America’s Original and most reliable yard hydrant since 1929

Immediate-flow, even in sub-zero temperatures

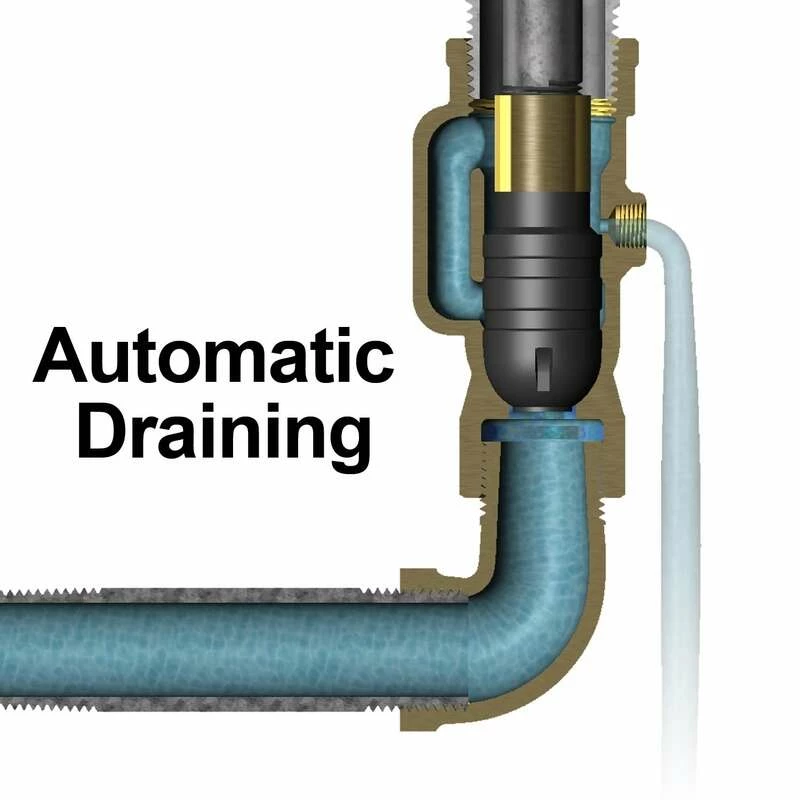

Automatic draining: Will not freeze when shut-off valve is properly installed below frost line and all devices are removed from nozzle.

1-in hot-dipped American seamless Schedule 40 galvanized pipe casing and 3/8-in stainless steel operating pipe

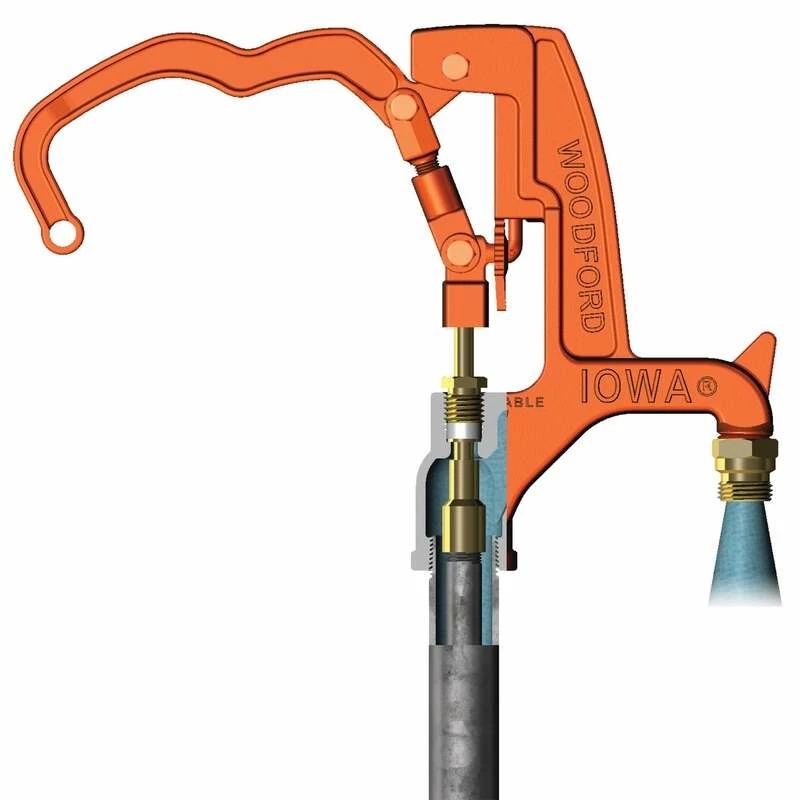

Rod guide eliminates side pull on rod and reduces wear on packing, packing nut and stem

Flow-finder and lock automatically sets the same flow each time or can be locked against accidental opening

Adjustable link provides easy and positive adjustment of the lever lock tension

One-piece variable flow plunger includes drain feature where plunger opens drain to prevent freezing and closes at any flow to prevent wasting water.
